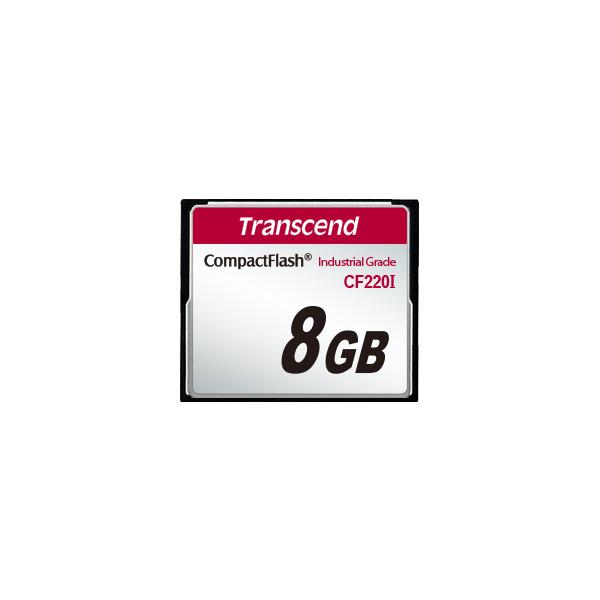

Ruggedized and featuring excellent temperature flexibility while delivering top performance, Transcend's CF220I Industrial Temp CF cards are specifically designed for industrial use and mission-critical applications.

Technologies
Wide Temperature
Garbage Collection
Wear Leveling
Bad Block Management
Early Move

Firmware Features
True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
True IDE Mode: Fixed Disk (Default)
Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
Built-in BCH ECC (Error Correction Code) functionality
Static Data Refresh
Early Retirement
Erase Count Monitoring
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
Wear-Leveling
Security Command
Hardware Features
Compliant with RoHS 2.0 standards
Compliant with CompactFlash specification 6.0
Durability: 10,000 insertion/removal cycles
Power Loss Protection (PLP) to prevent data loss in the event of sudden power outage
Promised operational reliability in a wide temperature range (from -40?C to 85?C)
