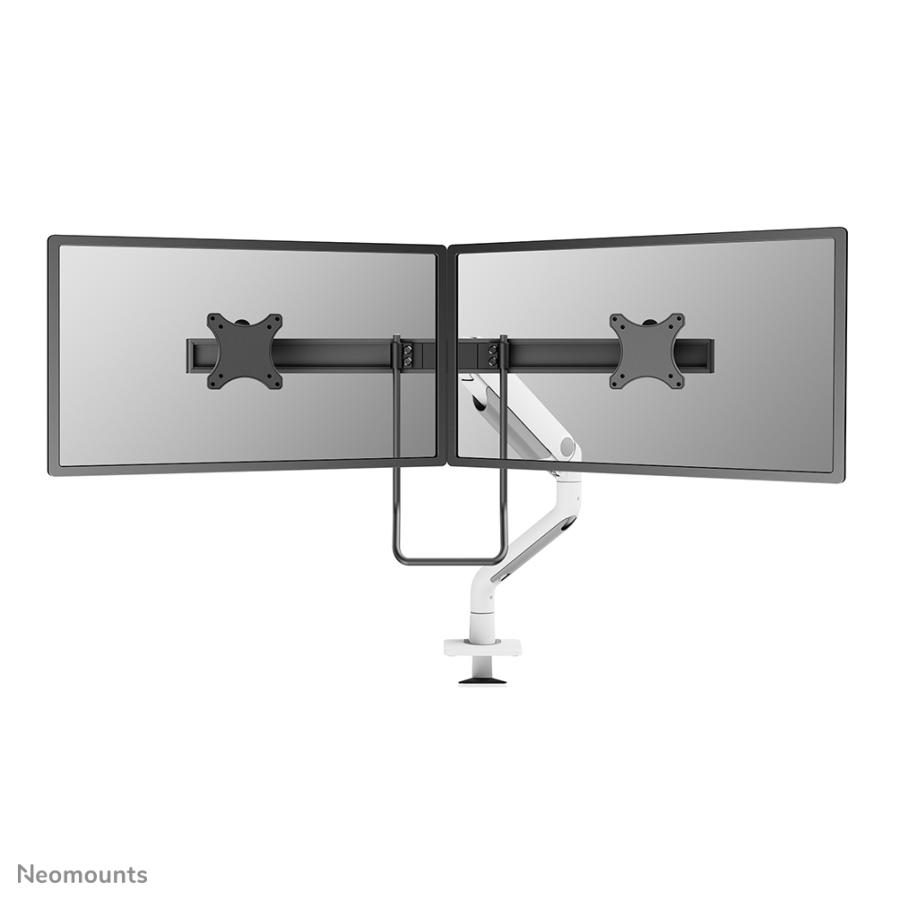

The Neomounts DS75S-950WH2 NEXT One is a full motion desk mount for two screens up to 32 inch with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.
The DS75S-950WH2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS75S-950WH2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Vendorcode DS75S-950WH2
EAN code 8717371441586
Warranty 5 jaar / 5 Years, Carry-In Qwerty
Gross size 833 x 1085 x 739 mm
Gross weight 0.00
Packaging 1/ retail box
Packaging bulk
carton box
Color Wit
Fastening systems
Distance to the wall (max)
74.1 cm
Distance to the wall (min)
20.4 cm
Maximum VESA mount
100x100 mm
Minimum VESA mount
75x75 mm
Rotate angle
180 °C, -180 °C
Swivel angle
90 °C, -90 °C
Swivel angle range
-90 - 90°
Tilt angle
60 °C, -60 °C
Tilt angle range
-60 - 60°
Compatibility
Maximum display-size compatibility
27 inch
Minimum display-size compatibility
17 inch
Displays
Number of displays supported
2
Panel mounting interface
75x75, 100x100 mm
Fastening systems
Harmonized System (HS) code
7326909890
Maximum screen size
32 inch
Minimum screen size
17 inch
Properties
Carry-weight capacity (max)
8kg
Clamp mount desk thickness (max)
5 cm
Depth adjustment range
173 - 710 mm
Desk thickness (max)
5.5 cm
Grommet mount desk thickness (max)
5.5 cm
Height adjustment range
191 - 527 mm
Height adjustment type
Gas spring
Material (Housing)
Aluminum
Width adjustment range
0 - 1074 mm
Here you will find an overview of the documents for this product, suc as user manuals, datasheets (with extended technical specs), drivers & firmware, video tutorials, and more. Where possible we will include multilingual versions of all documents.
Please click the link(s) below for further details.
Manufacturer websiteDatasheetUser manual
