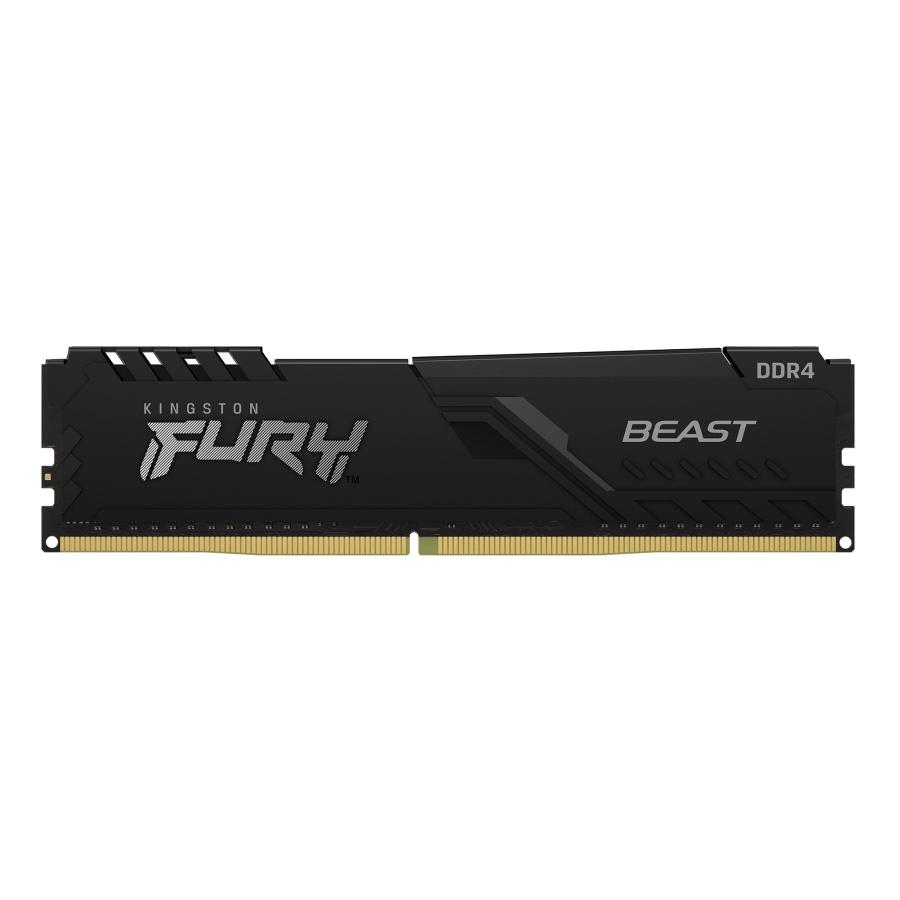

Kingston FURY KF432C16BB1/16 is a 2G x 64-bit (16GB)DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8, memorymodule, based on sixteen 1G x 8-bit FBGA components per module.

Each module kit supports Intel® Extreme Memory Profiles(Intel® XMP) 2.0. Each module has been tested to run atDDR4-3200 at a low latency timing of 16-18-18 at 1.35V.

TheSPDs are programmed to JEDEC standard latencyDDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMMuses gold contact fingers.

FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR4-2400 CL17-17-17 @ 1.2V
• XMP Profile #1: DDR4-3200 CL16-18-18 @ 1.35V
• XMP Profile #2: DDR4-3000 CL15-17-17 @ 1.35V
