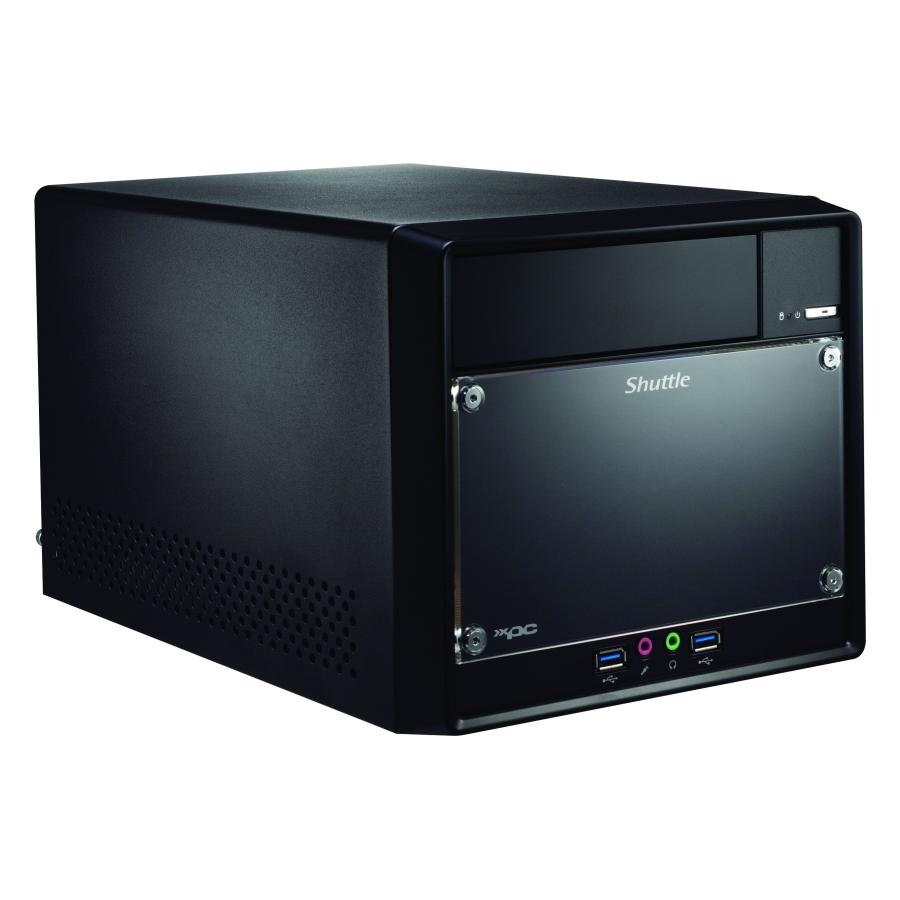

Cube-size PC Barebone for Intel's 12th/13th Gen. processors
The Shuttle XPC cube Barebone SH610R4 supports the 12th and 13th generation of Intel Core desktop processors for socket LGA1700, up to 64 GB DDR4-3200 memory, three 4K displays via DisplayPort and HDMI 2.0, high-performance M.2 SSDs and up to four USB 3.2 devices. The SH610R4 can be expanded with a high-performance graphics card for demanding applications while the second PCIe-X1-slot can be used for other expansion cards. WLAN and COM port can be additionally installed as well. The SH610R4 comes with a built-in 80 PLUS power supply and Shuttle's I.C.E. heatpipe cooling which means it is energy-efficient and ready for long-term operation. For a personal look and feel, the front panel can be customised by adding individual designs.
Vendorcode SH610R4
EAN code 0887993005911
Warranty 2 jaar, carry-in to Shuttle
Gross size 216 x 190 x 329 mm
Gross weight 3.4 kg
Packaging 1/ retail box
Packaging bulk
carton box
Color Zwart
Audio features
Audio output channels
5.1 channels
Connectivity
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
4
Certification
Sustainability Certifications
BSMI, C-TICK, CE, ENERGY STAR, Federal Communications Commission (FCC), RoHS
Chipset
Chipset (motherboard)
Intel® H610
Storage
Storage form factor
3.5,M.2
Storage interface
PCI Express, Serial-ATAIII
Memory
Memory clock-frequency
2666
2933
3200 MHz
Graphic cards
On-board graphics adapter
Yes
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Processors
Compatible processor series
Intel® Celeron®
Intel® Core i3
Intel® Core i5
Intel® Core i7
Intel® Core i9, Intel® Pentium ® Gold
Power supply
Nominal power output
300 W
Number of power supply units
1
Software
Operating system installed
No
Video port(s)
VGA (D-Sub) port(s) quantity
1
Here you will find an overview of the documents for this product, suc as user manuals, datasheets (with extended technical specs), drivers & firmware, video tutorials, and more. Where possible we will include multilingual versions of all documents.
Please click the link(s) below for further details.
Manufacturer websiteDatasheetGebruikershandleiding
