Durable Performance
GIGABYTE Ultra Durableâ„¢ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 4.0 Hardware Design
GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Hi-Fi Audio
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control: Multiple temperature/fan speed control points for precise fan curve
Dual Curve Mode: Slope/Stair dual mode for different user scenario
Fan Stop: Fan can stop completely below users' specified temperature point
Smart Fan 6 BIOS UI
Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input: For advanced users, we provide fan speed manual input for more precise control.
EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
Unified software platform for all Gigabyte supported products
Intuitive user interface for an eased experience
Modularized control components only for installed hardware
Auto update function to keep system up to date and support future products
LEARN MORE

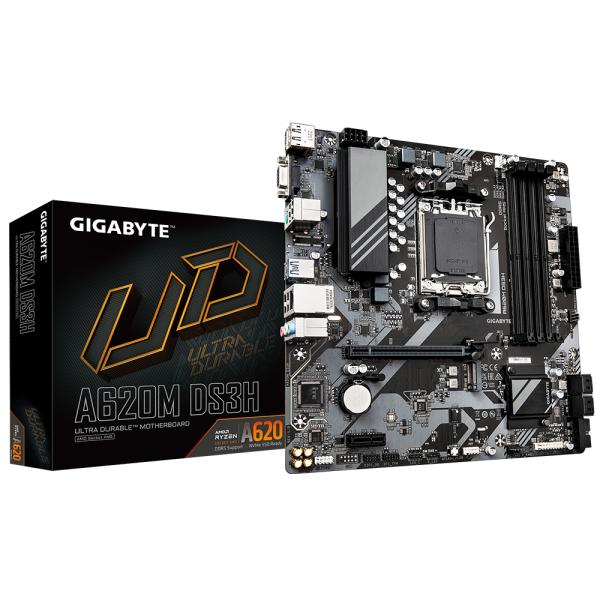

Vendorcode A620M DS3H
EAN code 4719331855567
Warranty 2 jaar / 2 Years, Carry-In Qwerty
Packaging 1/ retail box
Packaging bulk
carton box
Audio features
Audio output channels
7.1 channels
Front panel audio connector
Yes
Connectivity
Ethernet interface type
10/ 100/ 1000 Mbps
Number of SATA III connectors
4
USB port(s) quantity type
USB Type-A, USB Type-C
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
1
USB3.2 Gen 1 (3.1 Gen 1) Type-C port(s) quantity
1
USB3.2 Gen 1 (3.1 Gen 1) connectors
1
Chipset
Desktop Management Interface (DMI) version
2.7
Trusted Platform Module (TPM) connector
Yes
Compatibility
Form factor (Motherboard)
Micro-ATX
Storage
Storage interfaces supported
M.2, Serial-ATAIII
Memory
Maximum memory size
192 GB
Memory clock-frequency
6400 MHz
6200 MHz
6000 MHz
5600 MHz
5200 MHz
4800 MHz
4400 MHz
Memory clock-frequency (max)
6400 MHz
Graphic cards
Multi-GPU (SLI/CrossfireX) support
Not supported
Displays
Maximum resolution
4096x2160 pixels
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Processors
Compatible processor series
AMD Ryzen 5
AMD Ryzen 7 7th Gen
AMD Ryzen 9 7th Gen
Processor manufacturer
AMD
Processor socket
Socket AM5
Processor socket(s) supported
Socket AM5
Power supply
ATX Power connector (24-pin)
Yes
Video port(s)
VGA (D-Sub) port(s) quantity
1
