XTREME MEMORY
GIGABYTE H610 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.
Support for DDR5 XMP Up to 4800MHz and Beyond
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4800MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new 'CPU Upgrade' in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune
GIGABYTE's EasyTuneâ„¢ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

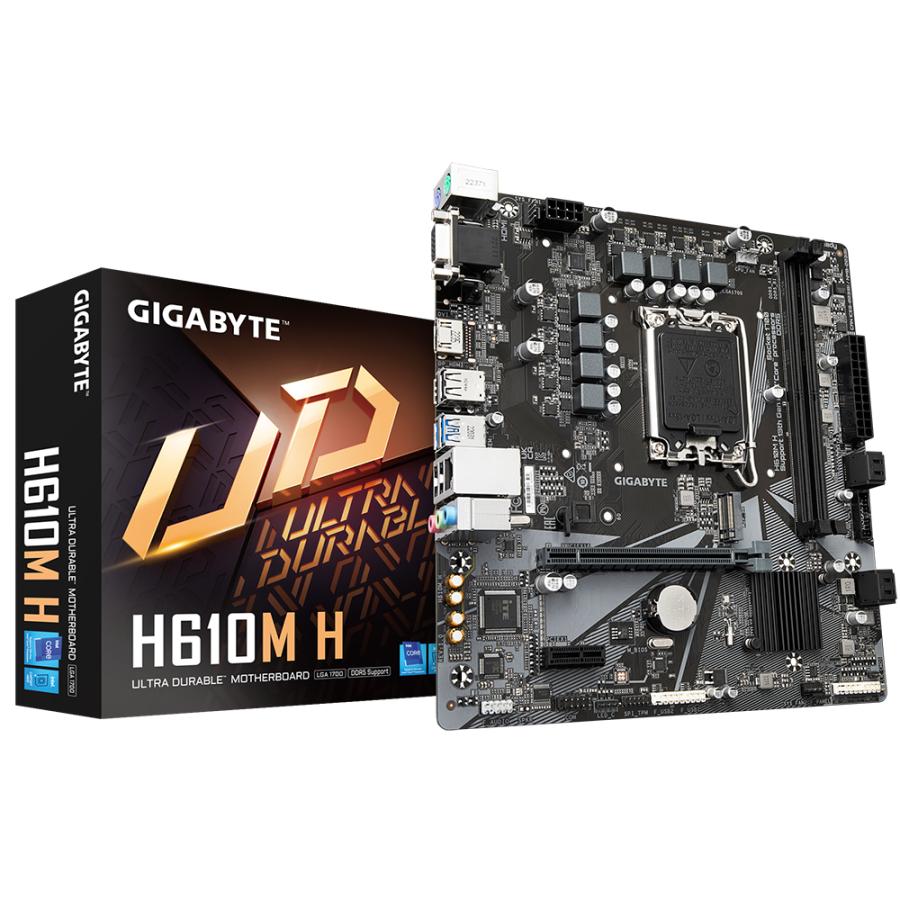

Vendorcode H610M H
EAN code 4719331854041
Warranty 2 jaar / 2 Years, Carry-In Qwerty
Gross size 230 x 70 x 215mm
Gross weight 0.79 kg
Packaging 1/ retail box
Packaging bulk
carton box
Audio features
Audio output channels
7.1 channels
Front panel audio connector
Yes
Connectivity
Ethernet interface type
10/ 100/ 1000 Mbps
Number of SATA III connectors
4
USB port(s) quantity type
USB Type-A
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
2
USB3.2 Gen 1 (3.1 Gen 1) connectors
1
Chipset
Chipset (motherboard)
Intel
Desktop Management Interface (DMI) version
2.7
Trusted Platform Module (TPM) connector
Yes
Compatibility
Form factor (Motherboard)
Micro-ATX
Storage
Storage interfaces supported
M.2, Serial-ATAIII
Memory
Memory clock-frequency
4400 MHz
4800 MHz
5200 MHz
5600 MHz
Graphic cards
Multi-GPU (SLI/CrossfireX) support
Not supported
Displays
Maximum resolution
4096x2160 pixels
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Processors
Compatible processor series
Intel® Celeron®
Intel® Core i3
Intel® Core i5
Intel® Core i7
Intel® Core i9, Intel® Pentium G
Processor manufacturer
Intel
Processor socket(s) supported
LGA1700
Power supply
ATX Power connector (24-pin)
Yes
Software
Bundled software
Norton Internet Security (OEM version), LAN bandwidth management software
Video port(s)
VGA (D-Sub) port(s) quantity
1
