6+1+1 Phases Hybrid Digital VRM Design
• 6+1+1 Phases Low RDS(on) MOSFETs
• Premium Choke and Capacitors to improve transient response and minimize oscillation
PCIe 4.0 Design
GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Support for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard.
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

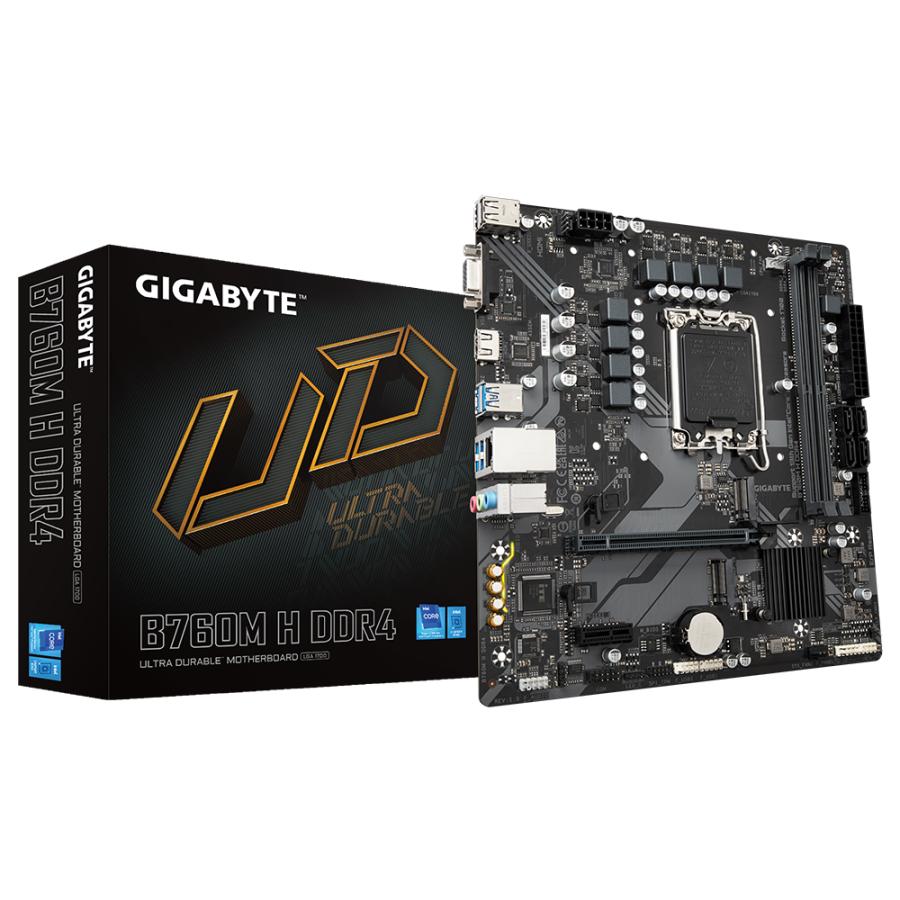

Vendorcode B760M H DDR4
EAN code 4719331854645
Warranty 2 jaar / 2 Years, Carry-In Qwerty
Gross size 575 x 280 x 285 mm
Packaging 1/ retail box
Packaging bulk
carton box
Audio features
Audio output channels
7.1 channels
Front panel audio connector
Yes
Connectivity
Ethernet interface type
10/ 100/ 1000 Mbps
Number of SATA III connectors
4
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
4
USB3.2 Gen 1 (3.1 Gen 1) connectors
1
Chipset
Chipset (motherboard)
Intel
Desktop Management Interface (DMI) version
2.7
PCIe x16 (Gen 4.x) slots
1
Trusted Platform Module (TPM) connector
Yes
Compatibility
Form factor (Motherboard)
Micro-ATX
Storage
Storage interfaces supported
M.2, Serial-ATAIII
Memory
Memory clock-frequency
2133 MHz
2400 MHz
2666 MHz
2933 MHz
3000 MHz
3200 MHz
Memory clock-frequency (max)
3200 MHz
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Processors
Compatible processor series
Intel® Celeron®, Intel® Pentium ® Gold
Maximum number of SMP processors
1
Processor manufacturer
Intel
Processor socket(s) supported
LGA1700
Power supply
ATX Power connector (24-pin)
Yes
CPU power connector (8-pin EPS)
Yes
Video port(s)
VGA (D-Sub) port(s) quantity
1
