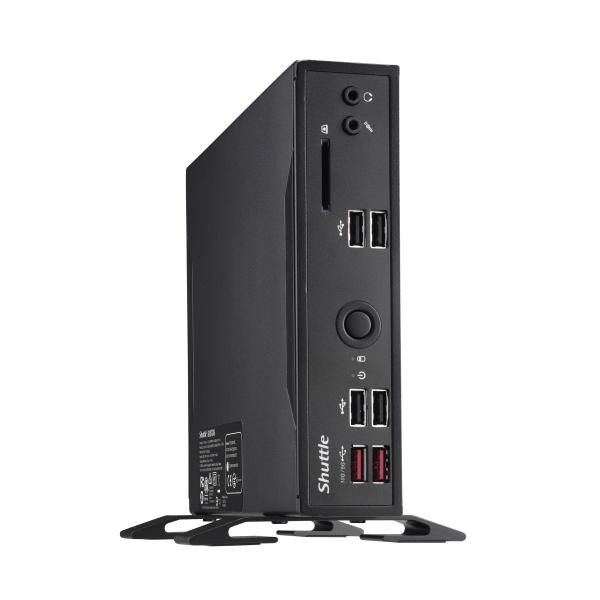

Fanless Slim PC with a Comet-Lake-U processor in industrial design
The DS20UV2-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one tradi-tional D-Sub/VGA connector. The built-in Intel 'Comet-Lake-U' processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2. 5 inch drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2, 5 inch bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20UV2 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
Vendorcode DS20U7V2
EAN code 0887993005362
Warranty 2 jaar, carry-in to Shuttle
Gross size 165 x 39.5 x 200mm
Gross weight 1.5 kg
Packaging 1/ retail box
Packaging bulk
carton box
Color Zwart
Connectivity
Card-reader integrated
Yes
Memory-card compatibility
SD, SDHC, SDXC
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
2
USB3.2 Gen 2 (3.1 Gen 2) Type-A port(s) quantity
2
Chipset
Chipset (motherboard)
Intel® SoC
Compatibility
Chassis type
1.3l sized PC
Storage
Storage form factor
2.5,M.2
Storage interface
PCI Express, Serial-ATAIII
Memory
Memory clock-frequency
2666 MHz
Memory module type
SO-DIMM
Graphic cards
On-board graphics adapter
Yes
Processor clock-frequency
1.8 GHz
Processor turbo clock-frequency
4.9 GHz
Network products
Ethernet LAN RJ-45 port(s) quantity
2
Processors
Processor family
Intel® Core i7
Processor generation
10th gen Intel® Core i7
Processor manufacturer
Intel
Processor number of cores
4
Processor number of threads
8
Thermal Design Power (TDP)
15 W
Processor features
Embedded options available
No
Software
Operating system installed
No
Video port(s)
VGA (D-Sub) port(s) quantity
1
