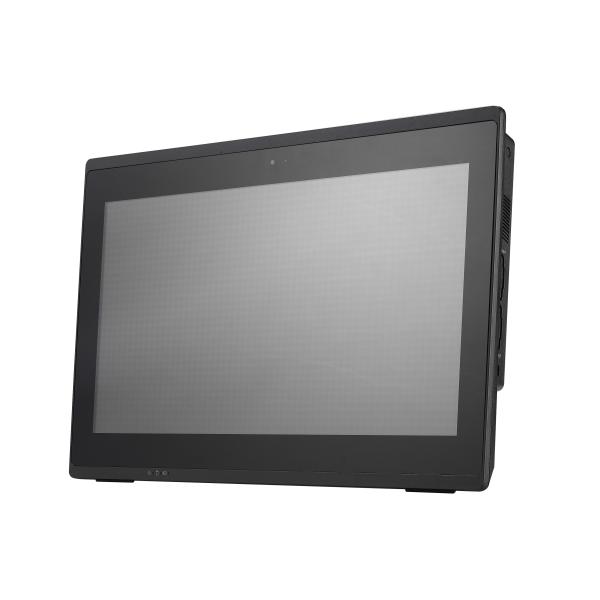

The Shuttle XPC All-in-One-System IoT P5200PA comes with a capacitive 15. 6 inch multi-touchscreen and Full-HD resolution. An Intel Ultra-Low-Voltage (ULV) processor makes for high computing power while it keeps energy consumption at a low level. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. The arrangement of connectors at the bottom leads to an effective cable management making for a clean, tidy appearance. The front panel is dust-protected and protected from splashing of water according to IP protection class 54
Vendorcode IOT P5200 PA
EAN code 4046047103843
Warranty 2 jaar, carry-in to Shuttle
Gross weight 3.25 kg
Packaging 1/ retail box
Packaging bulk
carton box
Color Zwart
Connectivity
Card-reader integrated
Yes
Memory-card compatibility
SD, SDHC, SDXC
Chipset
Chipset (motherboard)
Intel® SoC
Storage
Number of SSDs installed
1
Memory
Memory form factor
DIMM/SO-DIMM
Memory module type
SO-DIMM
Memory size (Internal)
4 GB
Memory type (Internal)
DDR4
Graphic cards
Discrete graphics adapter
No
On-board graphics adapter
Yes
Processor clock-frequency
1.9 GHz
Displays
Configurable TDP-down frequency
0.8 GHz
Panel brightness
250 cd/m²
Panel mounting interface
100x100 mm
Panel resolution
1920x1080 pixels
Multimedia
Camera resolution
1920x1080 pixels
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Ethernet LAN data rates
10, 100, 1000 MBps
Computers
Configurable TDP-down
12.5 W
Memory configuration
4 GB x1
Processors
Processor family
Intel® Celeron®
Processor manufacturer
Intel
Processor number of cores
2
Software
Operating system architecture
64-bit
Operating system installed
Windows 10 IoT Enterprise
Here you will find an overview of the documents for this product, suc as user manuals, datasheets (with extended technical specs), drivers & firmware, video tutorials, and more. Where possible we will include multilingual versions of all documents.
Please click the link(s) below for further details.
Manufacturer websiteDatasheetGebruikershandleiding
