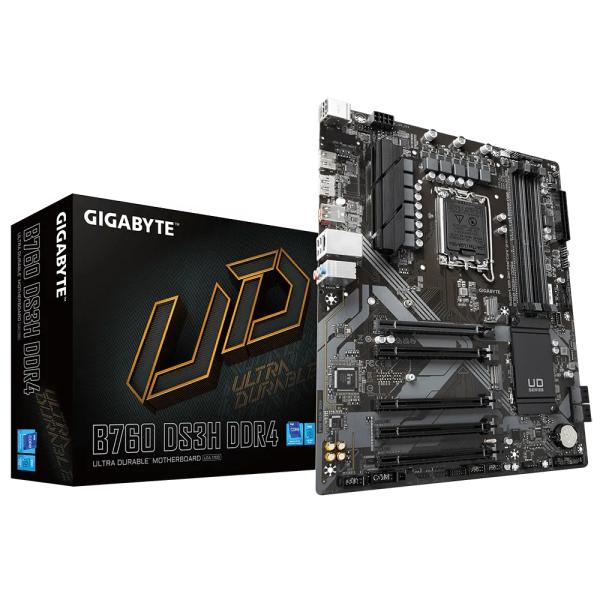

GIGABYTE B760 DS3H
Processorfabrikant: Intel
Processor socket: LGA 1700
Compatibele processors: IntelĀ® CeleronĀ®
Intel® Core⢠i3
Intel® Core⢠i5
Intel® Core⢠i7
Intel® Core⢠i9,...
Ondersteunde geheugen types: DDR5-SDRAM
Maximum intern geheugen: 256 GB
Geheugen slots type: DIMM
Ondersteunde opslagstationinterfaces: M.2
SATA III
Ondersteunde types opslag-drives: HDD & SSD
Soorten RAID: 0
1
5
10
Maximum resolutie: 4096 x 2304 Pixels
USB-connectortype: USB Type-A
USB Type-C
Vendorcode B760 DS3H
EAN code 4719331853136
Garantie 2 jaar / 2 Years, Carry-In Qwerty
Bruto afmetingen 305 x 35 x 244mm
Bruto gewicht 0.91
Verpakking 1/ retail box
Verpakking overdoos carton box
Kleur Bruin
Audio features
Audio output channels
7.1 channels
Front panel audio connector
Yes
Connectivity
Ethernet interface type
10/ 100/ 1000 Mbps
Number of SATA III connectors
4
SATA connectors quantity
4
Chipset
Chipset (motherboard)
Intel
Desktop Management Interface (DMI) version
2.7
Compatibility
Form factor (Motherboard)
ATX
Number of HDDs supported
4
Opslag
1st M.2 highest PCIe generation
4.0
1st M.2 largest key size
22110
2nd M.2 highest PCIe generation
4.0
2nd M.2 largest key size
2280
Geheugen
ECC Ńompatibility
ECC & Non-ECC
Maximum memory size
256 GB
Memory clock-frequency
4000 MHz
4800 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
Memory clock-frequency (max)
7600 MHz
Grafische kaarten
Multi-GPU (SLI/CrossfireX) support
Not supported
Monitoren
Maximum resolution
4096x2304 pixels
Netwerk producten
Ethernet LAN RJ-45 port(s) quantity
1
Processoren
Compatible processor series
IntelĀ® CeleronĀ®
IntelĀ® Core i3
IntelĀ® Core i5
IntelĀ® Core i7
IntelĀ® Core i9, IntelĀ® Pentium Ā® Gold
Processor compatibility
IntelĀ® 12th/ 13th Gen
Processor manufacturer
Intel
Processor socket(s) supported
LGA1700
Voedingen
ATX Power connector (24-pin)
Yes
