UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
PCIe 4.0 x4 M.2
AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. Upgrade with the latest 2nd generation Gen4 SSD, the performance is up to 7000MB/s which is up to 2x faster than PCIe3.0 SSD.
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
3% Cooler by implementing
2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.
Smart Fan 6 BIOS UI
1. Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
2. Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
3. Manual Input
For advanced users, we provide fan speed manual input for more precise control.
4. EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
5. Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
WIFI 6 802.11ax + BT 5 Module
Wireless solution 802.11ax WIFI 6 with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WIFI 6
- 5.5X throughput than 802.11ac 1x1
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
First adopter on 2.5GbE LAN onboard
2X Faster than ever
- Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
CONNECTING THE FUTURE - Rear USB3.2 Gen 2 Type-C®
Intel's native USB 3.2 Gen 2 host controller provides USB 3.2 Gen 2 ports with speeds up to 10Gbps .With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen 1 , the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C® and the traditional USB Type-A connector for better compatibility over a wider range of devices.
USB Type-C® Front Panel Connector
Equipped with next generation connectivity AORUS Motherboards already support the chassis of the future. The onboard USB Type-C® header for USB 3.2 Gen 1 makes access convenient when connecting a USB 3.2 Gen 1 drive or charging your new mobile device.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
RGB Fusion Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
- RGB Switch
Turn off all lighting effect on motherboard.
- Direct-To-BIOS
Boot into BIOS menu directly without pressing any keyboard button.
- Safe Mode
Boot into BIOS safe mode to change specific option without losing other BIOS settings.
ULTRA DURABLE
GIGABYTE Ultra Durableâ„¢ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

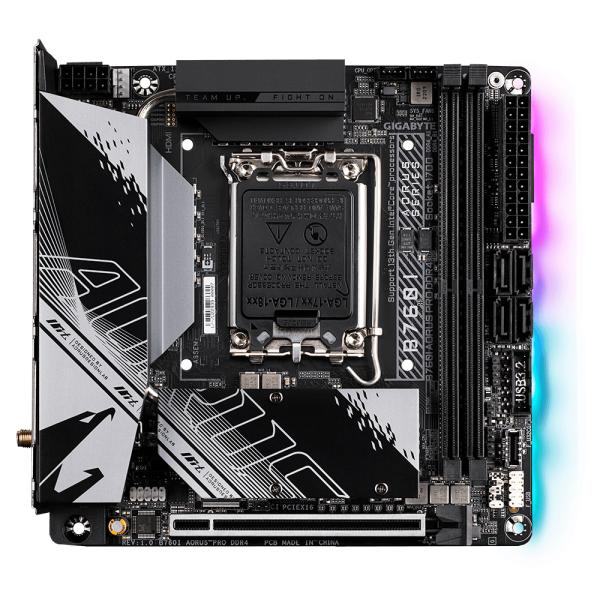

Vendorcode B760I AORUS PRO DDR4
EAN code 4719331851576
Warranty 2 jaar / 2 Years, Carry-In Qwerty
Packaging 1/ retail box
Packaging bulk
carton box
Audio features
Audio output channels
7.1 channels
Front panel audio connector
Yes
Connectivity
Ethernet interface type
2.5 Gigabit Ethernet
Number of SATA III connectors
4
USB port(s) quantity type
USB Type-A, USB Type-C
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
4
USB3.2 Gen 1 (3.1 Gen 1) connectors
2
USB3.2 Gen 2 (3.1 Gen 2) Type-A port(s) quantity
1
USB3.2 Gen 2 (3.1 Gen 2) Type-C port(s) quantity
1
Chipset
Chipset (motherboard)
Intel
Desktop Management Interface (DMI) version
2.7
Compatibility
Form factor (Motherboard)
Mini ITX
Storage
Storage interfaces supported
M.2, PCIe 4.0, Serial-ATAIII
Memory
Memory clock-frequency
2133 MHz
2400 MHz
2666 MHz
2933 MHz
3000 MHz
3200 MHz
3300 MHz
3333 MHz
3400 MHz
3466 MHz
3600 MHz
3666 MHz
3733 MHz
3800 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4300 MHz
4400 MHz
4500 MHz
4600 MHz
4700 MHz
4800 MHz
4933 MHz
5000 MHz
5133 MHz
5333 MHz
Graphic cards
Multi-GPU (SLI/CrossfireX) support
Not supported
Displays
Maximum resolution
4096x2304 pixels
Model
WEthernet LAN-chip model
Killer Wireless LAN 6 AX1650
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Processors
Compatible processor series
Intel® Celeron®
Intel® Core i3
Intel® Core i5
Intel® Core i7
Intel® Core i9, Intel® Pentium ® Gold
Processor manufacturer
Intel
Processor socket(s) supported
LGA1700
Power supply
ATX Power connector (24-pin)
Yes
