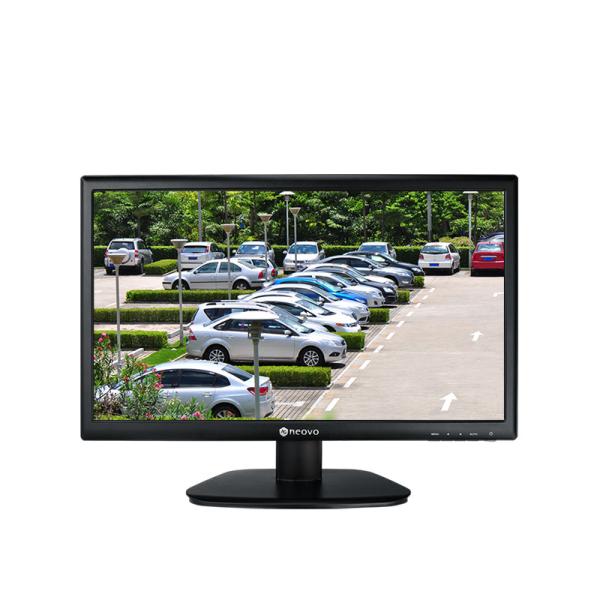

The SC-2202 22-inch video surveillance monitor with BNC connector is specifically designed for security operators – especially those with a 24/7 operation for efficient video monitoring. The SC-2202 provides value-added video enhancement controls that help create detailed images for low-light footage. Its optional monitor mounting solutions support single or multiple monitor setups. In terms of cost-to-performance, this model is the solution for productivity in modern operator workstations.
HIGHER COST PERFORMANCE
Designed with long-hour monitoring in mind, you can expect a reduction in system maintenance efforts and consequentially higher cost performance. The SC-2202 is commercial grade and meant to work 24/7, 365 days a year. Static images that would otherwise cause screen burn-in are gone with AG Neovo’s patented Anti-Burn-in technology. Expect prolonged life for LCD screens.
VERSATILE CONNECTIVITY WITH BNC AND HDMI INPUTS
This 22-inch surveillance monitor with BNC Connector supports both analogue and digital video inputs. Easily connect to various video surveillance equipment with HDMI, VGA and BNC in/out ports. BNC port allows connecting CCTV cameras directly to the monitor. With this bezel less security monitor, there is no need for a DVR/converter to get straight to instant monitoring.
PERFECT MATCH TO CCTV IMAGES
There is a special pre-configured CCTV Mode that maximises image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don’t waste time testing and re-adjusting constantly, this product already has it all figured out!
ENHANCED GAMMA SELECTION
Offering an enhanced gamma selection makes for amazing visual optimization. Improve the light, shadow, and colour balance quality of your videos with ease.
MISSING DETAILS IN DARK SCENES IS A THING OF THE PAST
More detail from black-level adjustment means improved visibility of dark images.
MULTIPLE MONITOR SETUPS MADE EASY
With VESA 100 x 100mm, the SC-2202 is compatible with AG Neovo’s mounting portfolio of desk and wall mounts. Whether you’re looking for a dual, quad, or more monitor set-up, AG Neovo is a one-stop-shop for creating ergonomic workstations in a control room.
Vendorcode SC-2202
EAN code 4710739597455
Warranty 3 jaar vanaf aan, Carry-In Neovo
Gross weight 3.2
Packaging 1/ retail box
Packaging bulk
carton box
Color Zwart
Fastening systems
Tilt angle range
-5 - 15°
Connectivity
Cabling inclusive
AC, Audio (3.5mm), D-SUB
Certification
Compliance Certifications
CE, EAC, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Sustainability Certifications
CE, EAC, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Displays
Contrast ratio (typical)
20000000:1
Digital horizontal frequency
30 - 85kHz
Digital vertical frequency
48 - 75Hz
Display brightness (typical)
250 cd/m²
Display number of colours
16.7 million colours
Display resolution
1920x1080 pixels
Panel brightness
250 cd/m²
Panel contrast-ratio
1000:1
Panel mounting interface
100x100 mm
Panel pixel pitch
0.248x0.248 mm
Panel resolution
1920x1080 pixels
Touch-screen technology
No
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Power supply
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
16 W
Properties
Depth (without stand)
45.5 mm
Video port(s)
VGA (D-Sub) port(s) quantity
1
VGA (D-sub) port(s) quantity
1
Here you will find an overview of the documents for this product, suc as user manuals, datasheets (with extended technical specs), drivers & firmware, video tutorials, and more. Where possible we will include multilingual versions of all documents.
Please click the link(s) below for further details.
Manufacturer websiteDatasheetGebruikershandleiding
