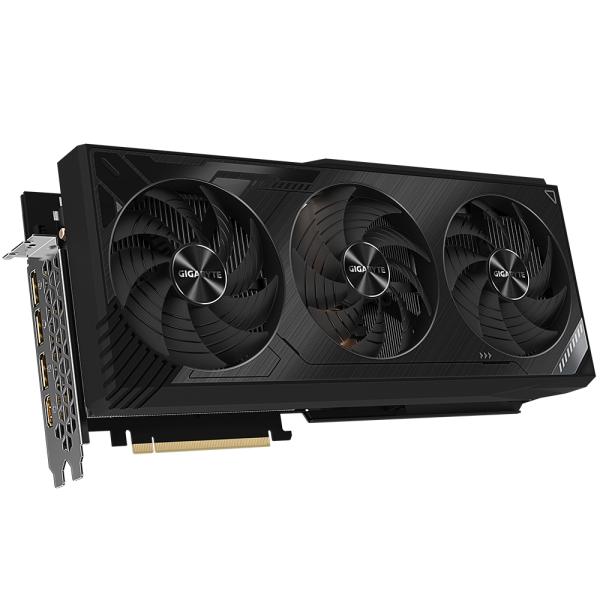

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
POWER INDICATORS
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Vendorcode GV-N4090WF3-24GD
EAN code 4719331311476
Warranty 2 jaar / 2 Years, Carry-In Qwerty
Gross size 150 x 70 x 331mm
Packaging 1/ retail box
Packaging bulk
carton box
Color Zwart
Coolers
Number of fans installed
3 fan(s)
Compatibility
Form factor
Full-Height Full-Length (FH/FL)
Memory
Graphics card memory type
GDDR6X
Memory clock-frequency
2100 MHz
Graphic cards
Discrete graphics card memory
24 GB
Graphics adapter model
GeForce RTX 4090
Graphics adapter-family
NVIDIA
Multi-GPU (SLI/CrossfireX) support
Not supported
Processor turbo clock-frequency
2520 MHz
Displays
Maximum resolution
7680x4320 pixels
Number of displays supported
4
Power supply
Minimum system power supply
850 W
Supplementary power connectors
1x16-pin
Properties
Quick installation guide
Yes
