Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your Business

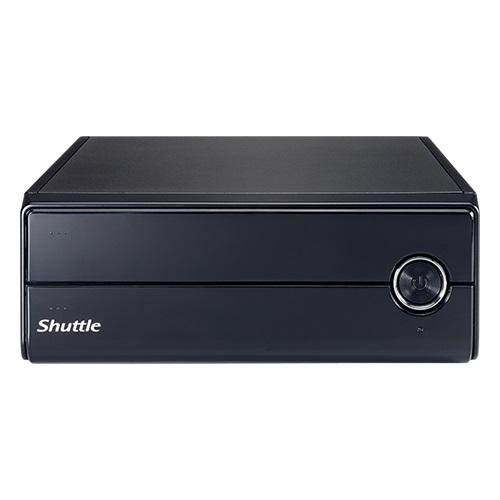

Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
Vendorcode XH610V
EAN code 887993005164
Warranty 3 jaar, carry-in to Shuttle
Gross size 200 x 72 x 240mm
Gross weight 2.2 kg
Packaging 1/ retail box
Packaging bulk
carton box
Color Zwart
Connectivity
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
3
USB3.2 Gen 1 (3.1 Gen 1) Type-C port(s) quantity
1
Certification
Sustainability Certifications
ENERGY STAR, ErP, RoHS
Chipset
Chipset (motherboard)
Intel® H610
Compatibility
Chassis type
3.5l sized PC
Storage
Storage form factor
2.5 inch
Storage interface
M.2, PCI Express, Serial-ATAIII
Memory
Memory clock-frequency
2133
2400
2666
2933
3200 MHz
Memory module type
SO-DIMM
Graphic cards
Graphics card family
Intel
On-board graphics adapter
Yes
Network products
Ethernet LAN RJ-45 port(s) quantity
2
Computers
Harmonized System (HS) code
84733080
Processors
Compatible processor series
Intel® Celeron®
Intel® Core i3
Intel® Core i5
Intel® Core i7
Intel® Core i9, Intel® Pentium ®
Power supply
AC adapter output current
6.32 A
AC adapter output voltage
19v
Nominal power output
120 W
Number of power supply units
1
Software
Operating system installed
No
Video port(s)
VGA (D-Sub) port(s) quantity
1
