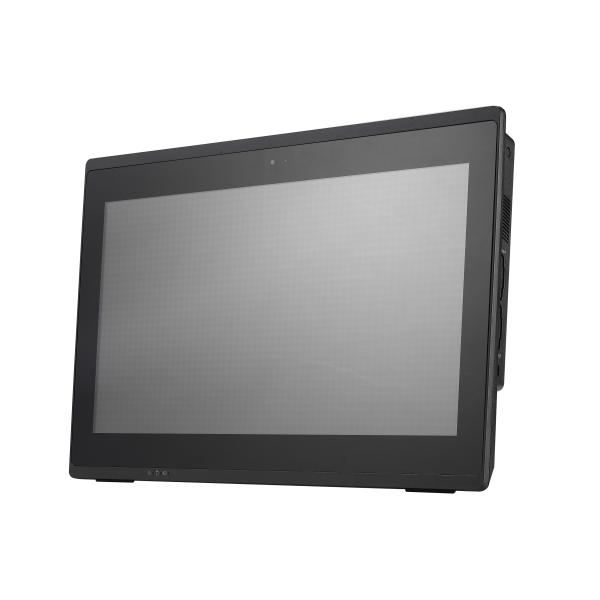

Shuttle's range of All-in-One PCs yet comprises models with three different screen sizes: 11. 6 inch, 15. 6 inch and 19. 5 inch. The P52U series model with a capacitive 15. 6 inch multi-touchscreen offers Full-HD resolution. An Intel Ultra-Low-Voltage (ULV) processor makes for high computing power while it keeps energy consumption at a low level. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
Vendorcode P52U3
EAN code 0887993005782
Warranty 3 jaar, carry-in to Shuttle
Gross size 393.6 x 272.5 x 39.8mm
Gross weight 3.25 kg
Packaging 1/ retail box
Packaging bulk
carton box
Color Zwart
Connectivity
Card-reader integrated
Yes
Memory-card compatibility
SD, SDHC, SDXC
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
4
Chipset
Chipset (motherboard)
Intel® SoC
Compatibility
Category
All-in-One PC barebone
Storage
Storage form factor
2.5 inch
Storage interface
M.2, Serial-ATAIII
Memory
Memory clock-frequency
2666
3200
MHz
Memory module type
SO-DIMM
Graphic cards
On-board graphics adapter
Yes
Processor clock-frequency
2.1 GHz
Processor turbo clock-frequency
4.1 GHz
Displays
Maximum resolution
3840x2160 pixels
Panel brightness
250 cd/m²
Panel mounting interface
100x100 mm
Panel resolution
1920x1080 pixels
Touch-screen technology
Yes
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Processors
Processor family
Intel® Core i3
Processor generation
10th gen Intel® Core i3
Processor manufacturer
Intel
Processor number of cores
2
Processor number of threads
4
Software
Operating system installed
No
Video port(s)
VGA (D-Sub) port(s) quantity
1
Here you will find an overview of the documents for this product, suc as user manuals, datasheets (with extended technical specs), drivers & firmware, video tutorials, and more. Where possible we will include multilingual versions of all documents.
Please click the link(s) below for further details.
Manufacturer websiteDatasheet
