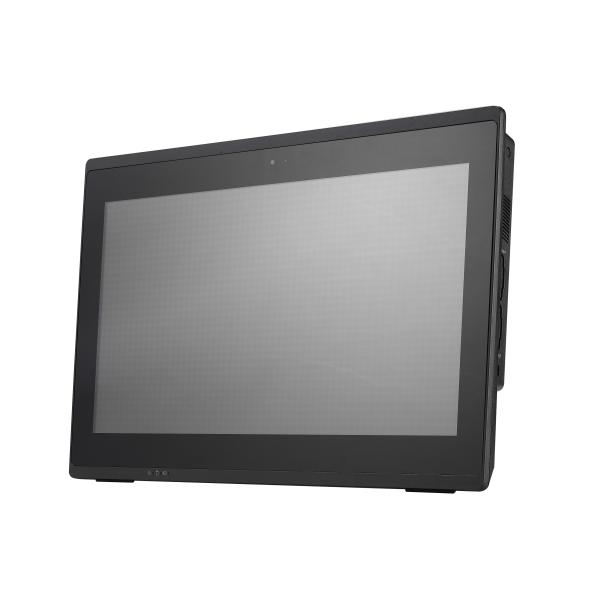

Shuttle's range of All-in-One PCs yet comprises models with three different screen sizes: 11. 6 inch, 15. 6 inch and 19. 5 inch. The P52U series model with a capacitive 15. 6 inch multi-touchscreen offers Full-HD resolution. An Intel Ultra-Low-Voltage (ULV) processor makes for high computing power while it keeps energy consumption at a low level. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
Vendorcode P52U
EAN code 0887993005768
Garantie 3 jaar, carry-in to Shuttle
Bruto afmetingen 393.6 x 272.5 x 39.8mm
Bruto gewicht 3.25
Verpakking 1/ retail box
Verpakking overdoos carton box
Kleur Zwart
Connectivity
Card-reader integrated
Yes
Memory-card compatibility
SD, SDHC, SDXC
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
4
Chipset
Chipset (motherboard)
Intel® SoC
Compatibility
Category
All-in-One PC barebone
Opslag
Storage form factor
2.5 inch
Storage interface
M.2, Serial-ATAIII
Geheugen
Memory clock-frequency
2666
3200
MHz
Memory module type
SO-DIMM
Grafische kaarten
On-board graphics adapter
Yes
Processor clock-frequency
1.9 GHz
Monitoren
Maximum resolution
3840x2160 pixels
Panel brightness
250 cd/m²
Panel mounting interface
100x100 mm
Panel resolution
1920x1080 pixels
Touch-screen technology
Yes
Netwerk producten
Ethernet LAN RJ-45 port(s) quantity
1
Processoren
Processor family
Intel® Celeron®
Processor manufacturer
Intel
Processor number of cores
2
Processor number of threads
2
Software
Operating system installed
No
Video port(s)
VGA (D-Sub) port(s) quantity
1
Op deze plaats verwijzen wij u naar diverse documenten, zoals handleidingen, datasheets (met uitgebreide specificaties), drivers & firmware, video overzicht e.d. Wij vermelden zoveel mogelijk links naar Nederlandstalige documenten, als die er niet zijn de Engelstalige.
Klik op de link(s) voor meer informatie.
Website fabrikantDatasheet
