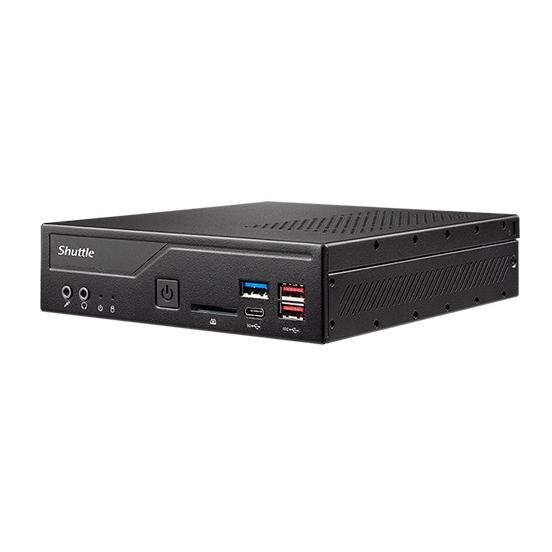

Shuttle XPC Slim series DH670 supports Intel® 12th-Gen Alder Lake hybrid architecture which combines high-performance cores along with high-efficiency cores and moreover supports a 65W base power processor with maximum up to 16 cores and 24 threads. With the brand-new Intel® UHD graphic processor integrated, the model can deliver incredible clarity for 4K/60P UHD resolution so as to bring more achievement on AI and computer vision applications. As for its display productivity and flexibility, DH670 supports quad displays via two HDMI 2.0b and two DisplayPort. Despite its 1.3L slim chassis design, DH670 offers multiple interfaces to deliver expandability and connectivity where it matters, including a dual Intel® Gigabit Lan, two RS232, an SD card reader, two M.2 expansion slot, four USB 3.2 Gen2, and four USB 3.2 Gen1 (includes one Type-C). In sum, this stable and efficient DH670 is suitable for wide range of application, such as digital signage and kiosk.
Vendorcode DH670
EAN code 0887993004983
Warranty 3 jaar, carry-in to Shuttle
Gross size 190 x 43 x 165mm
Gross weight 1.3 kg
Packaging 1/ retail box
Packaging bulk
carton box
Color Zwart
Audio features
Audio output channels
2.0 channels
Connectivity
Card-reader integrated
Yes
Memory-card compatibility
SD, SDHC, SDXC
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
3
USB3.2 Gen 2 (3.1 Gen 2) Type-A port(s) quantity
4
USB3.2 Gen 2 port(s) quantity
2
Certification
Sustainability Certifications
ENERGY STAR, ErP, RoHS
Chipset
Chipset (motherboard)
Intel® H670
Compatibility
Chassis type
1.3l sized PC
Storage
Serial-ATA3 port(s) quantity
3
Storage form factor
2.5,M.2
Storage interface
M.2, Serial-ATAIII
Memory
Memory clock-frequency
2133
2400
2666
2933
3200 MHz
Memory form-factor
SO-DIMM
Memory module type
SO-DIMM
Graphic cards
On-board graphics adapter
Yes
Displays
Panel mounting interface
75x75, 100x100 mm
Network products
Ethernet LAN (RJ-45) port(s) quantity
2
Ethernet LAN RJ-45 port(s) quantity
2
Power supply
AC adapter output current
6.32 A
AC adapter output voltage
19 v
Nominal power output
120 W
Number of power supply units
1
Software
Operating system installed
No
