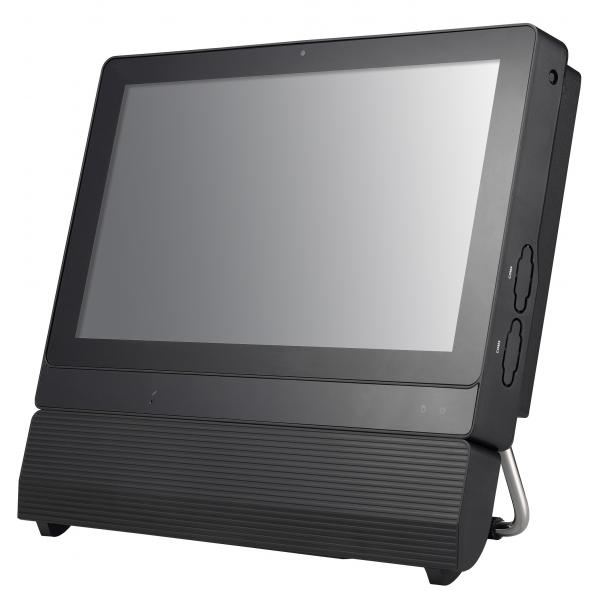

The Shuttle POS P220 is an all-in-one system with an 11. 6 inch multi-touch display. It is positioned as a space-saving POS system or control device for media playback or automation. The adjustable stand allows for flexible viewing and operation angles, while it can also be VESA-mounted to appropriate stands or walls. The front panel is protected from splashing of water and dust according to the IP54 rating. A detachable cable collector box on the bottom helps avoid clutter. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation.
Vendorcode P220 POS BLACK
EAN code 4046047103775
Warranty 2 jaar, carry-in to Shuttle
Gross weight 2.47 kg
Packaging 1/ retail box
Packaging bulk
carton box
Color Zwart
Connectivity
Card-reader integrated
Yes
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
4
Chipset
Chipset (motherboard)
Intel® SoC
Storage
Storage interface
PCI Express (NVME)
Memory
Memory module type
SO-DIMM
Memory size (Internal)
4 GB
Memory type (Internal)
DDR4
Graphic cards
Discrete graphics adapter
No
On-board graphics adapter
Yes
Processor clock-frequency
1.9 GHz
Displays
Configurable TDP-down frequency
0.8 GHz
Panel brightness
220 cd/m²
Panel mounting interface
100x100 mm
Panel resolution
1366x768 pixels
Touch-screen technology
Yes
Multimedia
Camera resolution
1920x1080 pixels
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Ethernet LAN data rates
10, 100, 1000 MBps
Computers
Configurable TDP-down
12.5 W
Memory configuration
4 GB x1
Processors
Processor model
Intel® Celeron® 5205 U
Processor number of cores
2
Software
Operating system installed
No
Video port(s)
VGA (D-Sub) port(s) quantity
1
