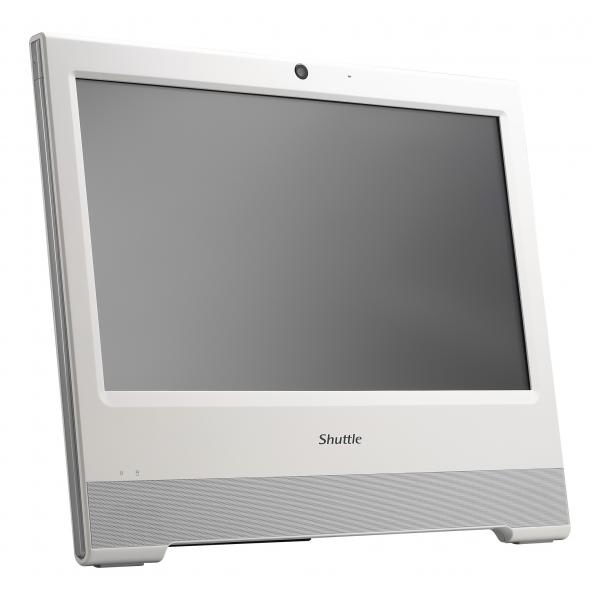

The Shuttle POS X508 is a fully equipped All-in-One pc with 15. 6 inch touchscreen. It is powered by an Intel ULV processor of the 10th generation 'Comet Lake'. The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
Vendorcode X508 POS WHITE
EAN code 4046047103799
Warranty 2 jaar, carry-in to Shuttle
Gross weight 3.5 kg
Packaging 1/ retail box
Packaging bulk
carton box
Color Wit
Connectivity
Card-reader integrated
Yes
Memory-card compatibility
SD,SDHC,SDXC
Chipset
Chipset (motherboard)
Intel® SoC
Storage
Number of SSDs installed
1
Memory
Memory clock-frequency
2666 MHz
Memory form-factor
DIMM/SO-DIMM
Memory module type
SO-DIMM
Memory size (Internal)
4 GB
Memory type (Internal)
DDR4
Graphic cards
Discrete graphics adapter
No
On-board graphics adapter
Yes
Processor clock-frequency
1.9 GHz
Displays
Configurable TDP-down frequency
0.8 GHz
Panel brightness
220 cd/m²
Panel mounting interface
100x100 mm
Panel resolution
1366x768 pixels
Multimedia
Camera resolution
1920x1080 pixels
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Ethernet LAN data rates
10, 100, 1000 MBps
Computers
Configurable TDP-down
12.5 W
Memory configuration
4 GB x1
Processors
Processor family
Intel® Celeron®
Processor manufacturer
Intel
Processor number of cores
2
Software
Operating system installed
No
Here you will find an overview of the documents for this product, suc as user manuals, datasheets (with extended technical specs), drivers & firmware, video tutorials, and more. Where possible we will include multilingual versions of all documents.
Please click the link(s) below for further details.
Manufacturer websiteDatasheet
