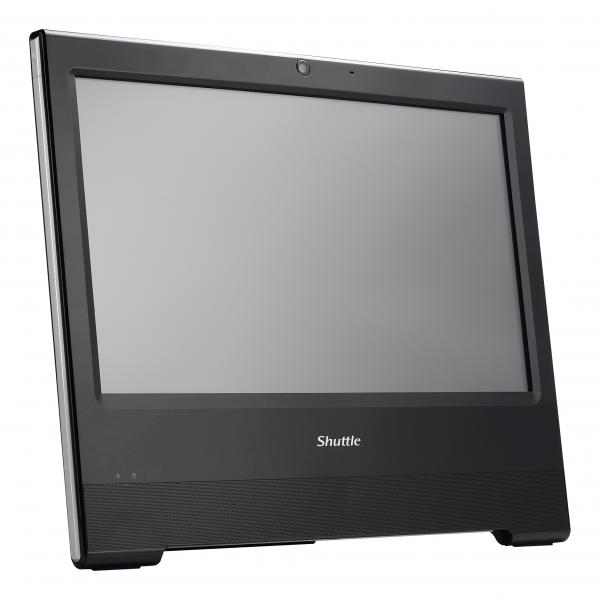

The Shuttle POS X508 is a fully equipped All-in-One pc with 15. 6 inch touchscreen. It is powered by an Intel ULV processor of the 10th generation 'Comet Lake'. The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
Vendorcode XPAC-X508POS2
EAN code 4046047103805
Garantie 2 jaar, carry-in to Shuttle
Bruto gewicht 3.50
Verpakking 1/ retail box
Verpakking overdoos carton box
Kleur Zwart
Connectivity
Card-reader integrated
Yes
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
4
Chipset
Chipset (motherboard)
Intel® SoC
Opslag
Storage form factor
2.5 inch
Storage interface
Serial-ATA3
Geheugen
Memory clock-frequency
2666 MHz
Memory module type
SO-DIMM
Memory size (Internal)
4 GB
Memory type (Internal)
DDR4
Grafische kaarten
Discrete graphics adapter
No
On-board graphics adapter
Yes
Processor clock-frequency
1.9 GHz
Monitoren
Configurable TDP-down frequency
0.8 GHz
Panel brightness
220 cd/m²
Panel mounting interface
100x100 mm
Panel resolution
1366x768 pixels
Touch-screen technology
Yes
Multimedia
Camera resolution
1920x1080 pixels
Netwerk producten
Ethernet LAN RJ-45 port(s) quantity
1
Ethernet LAN data rates
10, 100, 1000 MBps
Computers
Configurable TDP-down
12.5 W
WEthernet LAN-chip manufacturer
Realtek
Processoren
Processor model
Intel® Celeron® 5205 U
Processor number of cores
2
Software
Operating system installed
No
Video port(s)
VGA (D-Sub) port(s) quantity
1
Op deze plaats verwijzen wij u naar diverse documenten, zoals handleidingen, datasheets (met uitgebreide specificaties), drivers & firmware, video overzicht e.d. Wij vermelden zoveel mogelijk links naar Nederlandstalige documenten, als die er niet zijn de Engelstalige.
Klik op de link(s) voor meer informatie.
Website fabrikantDatasheet
