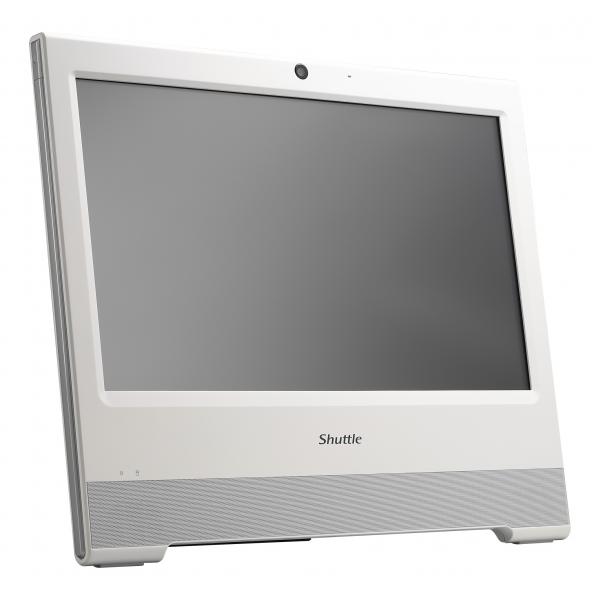

The Shuttle XPC all-in-one X50V8U3 is the latest addition to the X50 Series and is powered by an Intel ULV processor of the 10th generation 'Comet Lake'. The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
Vendorcode X50V8U3
EAN code 0887993005102
Warranty 2 jaar, carry-in to Shuttle
Gross size 391 x 327 x 42mm
Gross weight 3.5 kg
Packaging 1/ retail box
Packaging bulk
carton box
Color Wit
Connectivity
Card-reader integrated
Yes
Memory-card compatibility
SD,SDHC,SDXC
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
4
Storage
Storage form factor
2.5 inch
Storage interface
Serial-ATA3
Memory
Memory clock-frequency
2666 MHz
Memory module type
SO-DIMM
Graphic cards
On-board graphics adapter
Yes
Processor clock-frequency
2.1 GHz
Processor turbo clock-frequency
4.1 GHz
Displays
Maximum resolution
3840x2160 pixels
Panel brightness
220 cd/m²
Panel resolution
1366x768 pixels
Touch-screen technology
Yes
Model
WEthernet LAN-chip model
Realtek RTL8821 CE
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Processors
Processor generation
10th gen
Processor model
Intel® Core i3
Processor number of cores
2
Processor number of threads
4
Thermal Design Power (TDP)
15 W
Software
Operating system installed
No
Video port(s)
VGA (D-Sub) port(s) quantity
1
Wireless network
Wireless LAN standard
802.11b,802.11g,Wireless LAN 4 (802.11n,Wireless LAN 5 (802.11ac)
