Robust 1.3-litre Slim PC for powerful Comet Lake-S processors

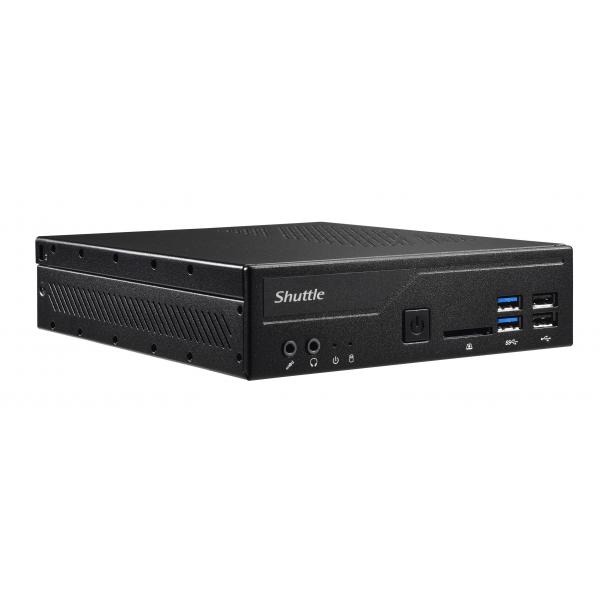

The Shuttle XPC slim Barebone DH410 with H410 chipset houses the performance of Intel's 10th-gen Core desktop processors (codenamed Comet Lake-S) for socket LGA1200 in a compact 1.3-litre format. The DH410 allows for two Ultra HD displays to be operated at the same time via HDMI 2.0a and DisplayPort. It also offers Dual Intel LAN and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
HDMI 2.0
The enhanced version of the popular HDMI standard permits even higher screen resolutions. 4K playback in resolutions of 3.840x2.160 and above promise breathtakingly sharp details. And the audio signal is of course still transmitted via the same cable – creating fewer cables.
High-resolution DisplayPort
The DisplayPort connector allows for connections with digital high-resolution displays. Depending on processor and display model resolutions of up to 4K/Ultra HD (3840x2160) can be achieved. Besides picture signal, DisplayPort cables can also lead digital sounds signals in excellent quality.
Remote Power-on
If because of space constraints the machine cannot be switched on by pressing the front power button, it can be started with a separate remote control. You will find an appropriate four-pin connector on the back panel of the PC (pitch 2.54 mm).
Always-on Jumper
This machine is provided with a hardware solution to keep it permanently switched on (e.g. after a power outage). If you remove the jumper documented in the manual, the PC then starts as soon as the power supply is restored.
Card reader
Simply insert the memory card and you can access all stored photos and videos immediately.
Dual network connection
In this model two gigabit network controllers ensure maximum data transmission rates via load balancing and maximum availability via the failover function.
Pre-assembled cabling saves time
The most important power and data cables are already routed and just have to inserted into the relevant components. This saves valuable time when setting up the system.
Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
You can rely on SSD
This is where an energy-saving 'Solid State Drive' should be used. This drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.
2. 5 inch SSD/HDD only
An extremely compact PC housing offers less space for drives, that's why this PC uses slimline 2.5-inch hard disks or SSDs. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2. 5 inch HDDs are every bit as good as their 3. 5 inch brothers.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Optimal air flow
Warm air is transported out of the chassis by means of cleverly arranged components, which enables a large number of parts to be cooled simultaneously in the air flow. At no time can heat build up and adversely affect the stability of the system.
The interface for the fastest of memory media
Internal drives to be used inside this Mini-PC can transfer data at a speed of up to 6 Gbit/s. Hard drives thus run significantly faster and brand-new media technologies such as SSDs can use their full potential. Be sure to look for SATA 6 Gbit/s.
Vendorcode DH410
EAN code 0887993002385
Garantie 2 jaar, carry-in to Shuttle
Bruto afmetingen 190 x 43 x 165mm
Bruto gewicht 1.3 kg
Verpakking 1/ retail box
Verpakking overdoos carton box
Kleur Zwart
Audio features
Audio output channels
5.1 channels
Connectivity
Card-reader integrated
Yes
Memory-card compatibility
SD,SDHC,SDXC
USB3.2 Gen 1 (3.1 Gen 1) Type-A port(s) quantity
4
Certification
Satefy certification
ETL, CB, BSMI
Sustainability Certifications
ENERGY STAR
Chipset
Chipset (motherboard)
Intel® H410
Compatibility
Chassis type
1.35l sized PC
Opslag
Storage form factor
2.5,M.2
Storage interface
M.2, Serial-ATAIII
Geheugen
Memory clock-frequency
2666
2933
MHz
Memory module type
SO-DIMM
Grafische kaarten
Graphics adapter-family
Intel
On-board graphics adapter
Yes
Monitoren
Maximum resolution
3840x2160 pixels
Number of displays supported
2
Panel mounting interface
75x75, 100x100 mm
Netwerk producten
Ethernet LAN RJ-45 port(s) quantity
2
Processoren
Processor socket
LGA1200 (Socket H5)
Voedingen
AC adapter output current
4.74 A
AC adapter output voltage
19 v
Number of power supply units
1
Software
Operating system installed
No
