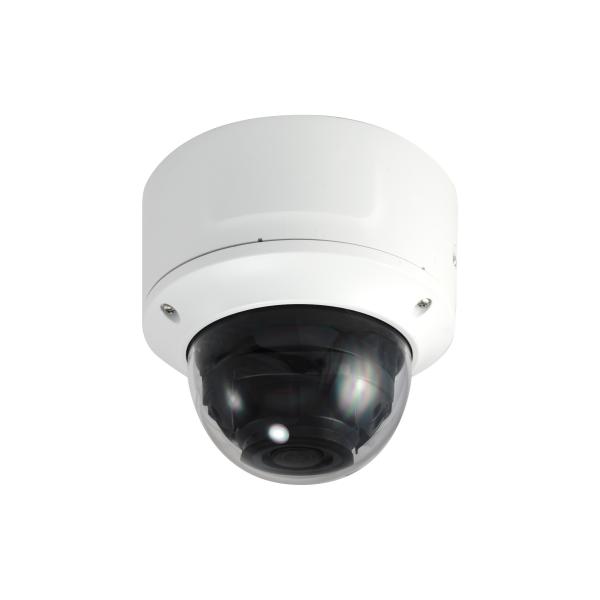

The LevelOne FCS-3098 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP67 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3098 offers 8-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat 5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
• 8-Megapixel high-definition resolution
• Video compression: H.264/H.265
• Supports 4.3X optical zoom
• Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
• Vandal-proof IK10-rated housing
• Weatherproof IP67-rated housing
• Built-in infrared LEDs for night viewing up to 30m
• Built-in Micro SDHC/SDXC card slot for local storage
Vendorcode FCS-3098
EAN code 4015867203019
Warranty 2 Jaar, Carry-In Qwerty
Gross weight 1.29 kg
Packaging 1/ retail box
Packaging bulk
carton box
Color Wit
Audio features
Audio output channels
1 channels
Voice codecs
MP2L2, G.711 A, G.711u, G.722, G.726
Connectivity
Card-reader integrated
Yes
Ethernet interface type
Fast Ethernet
Maximum memory-card size suppported
128 GB
Memory-card compatibility
SD, SDHC, SDXC
Storage
Storage device (hard drive)
No
Graphic cards
Graphics resolutions supported
2944 x 1656
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2560 x 1440
3840 x 2160
Displays
Video compression formats
H.264, H.265
Video formats supported
AVI
Viewing angle, diagonal
146°
Viewing angle, horizontal
115°
Viewing angle, vertical
60°
Wide Dynamic Range (WDR)
Yes
Multimedia
Camera shutter speed
1/ 3 - 1/ 1000000
Minimum illumination
0.01 lx
PTZ control (Pan/Tilt/Zoom)
Yes
Sensor size
25.4 / 2.5 mm (1 / 2.5 inch)
Network products
Ethernet LAN RJ-45 port(s) quantity
1
Power over Ethernet (PoE) support
Yes
Network features
Network protocols supported
TCP/IP
UDP
ICMP
HTTP
HTTPS
FTP
DHCP
DNS
DDNS
RTP
RTSP
RTCP
PPPoE
NTP
UPnP
SMTP
SNMP
IGMP
IEEE 802.1X
QoS
IPv6
Networking standards
IEEE 802.3af
Power supply
Power consumption (typical)
11.5 W
Properties
Focal length range (f-f)
2.8 - 12 mm
